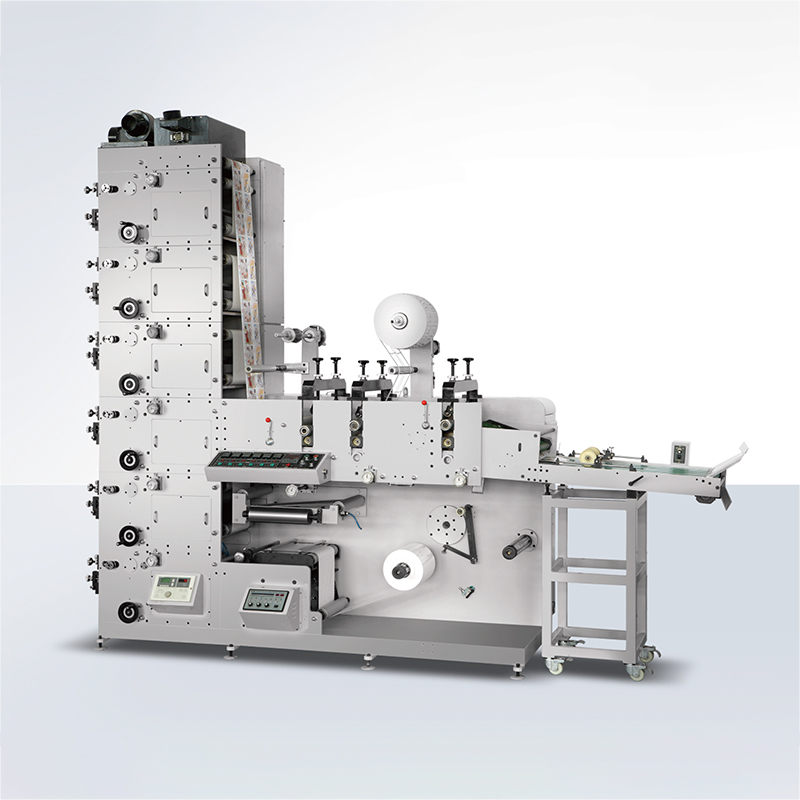

Stack Flexo Press with Three Die-cutting Stations ZBS-320G/450G
1.Adopts the ceramic anilox cylinder to transfer the ink.
2.Each printing unit adopts 360°plate-adjustment.
3.Three die-cutting stations, the first and second die-cutting station can do double side work, the third die-cutting station can be used as sheeter.
online service
1.Adopts the ceramic anilox cylinder to transfer the ink.
2.Each printing unit adopts 360°plate-adjustment.
3.Three die-cutting stations, the first and second die-cutting station can do double side work, the third die-cutting station can be used as sheeter.
4.Computerized web-guiding system is installed in the front of the printing unit, ensuring the materials are in the right position. (standard configuration)
5.After sheeting in the third die-cutting station, conveyor belt can output the products orderly. (optional)
6.Unwinding and rewinding tension are auto-controlled by magnetic powder, two rewinders is optional in this machine.
7.Video inspecting system is an option, it can supervise the printing quality when in high speed.
8.The ink rollers can be separated from the printing roller, and keep running when the machine stops.
9.Main motor use inverter to adjust stepless speed.
10.The machine can finish material-feeding, printing, varnishing, drying, laminating, die-cutting, rewinding sheeter in one process. It is an ideal machine for printing adhesive labels.
Main Technical parameters
|
Model
|
ZBS - 320G
|
ZBS - 450G
|
|
Printing speed
|
60 米 / 分 (m/min)
|
60 米 / 分 (m/min)
|
|
Printing colour
|
1 - 6 色 (4 + 4 色)(colours)
|
1 - 6 色 (4 + 4 色)(colours)
|
|
Max. web width
|
320mm
|
460mm
|
|
Max. printing width
|
310mm
|
450mm
|
|
Max. unwinding diameter
|
650mm
|
650mm
|
|
Max. rewinding diameter
|
650mm
|
650mm
|
|
Printing length
|
177.8 - 355.6mm 206.3 - 460.3mm (选配 Options) 238.1 - 539.25mm (选配 Options)
|
177.8 - 355.6mm 206.3 - 460.3mm (选配 Options) 238.1 - 539.25mm (选配 Options)
|
|
Registration Accuracy
|
±0.1mm
|
±0.1mm
|
|
Dimensions（L×W×H）
|
260011003050mm (6 色)
|
260012303050mm (6 色)
|
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Flat-bed Label Die-cutting MachineWQM-320G/420
This machine adopts accurate flat die-cutting system, controlled by servo motor.
Two sensors are used to control the web-guider and one sensor to follow the registration mark. It's suitable for die-cutting of all kinds of adhesive labels and hologram labels. It's the ideal converting machine for flexo printing machine, screen printing machine and gravure printing machine.
Adhesive Label(logo) Die-cutting Machine WQM-320G/420
This machine adopts accurate flat die-cutting system, controlled by servo motor.
There are two sensors to control the web-guider and one sensor to follow the registration mark. It’s suitable for die-cutting all kind of adhesive labels and hologram labels. It’s the ideal converting machine for flexo printing machine, screen printing machine and gravure printing machine.

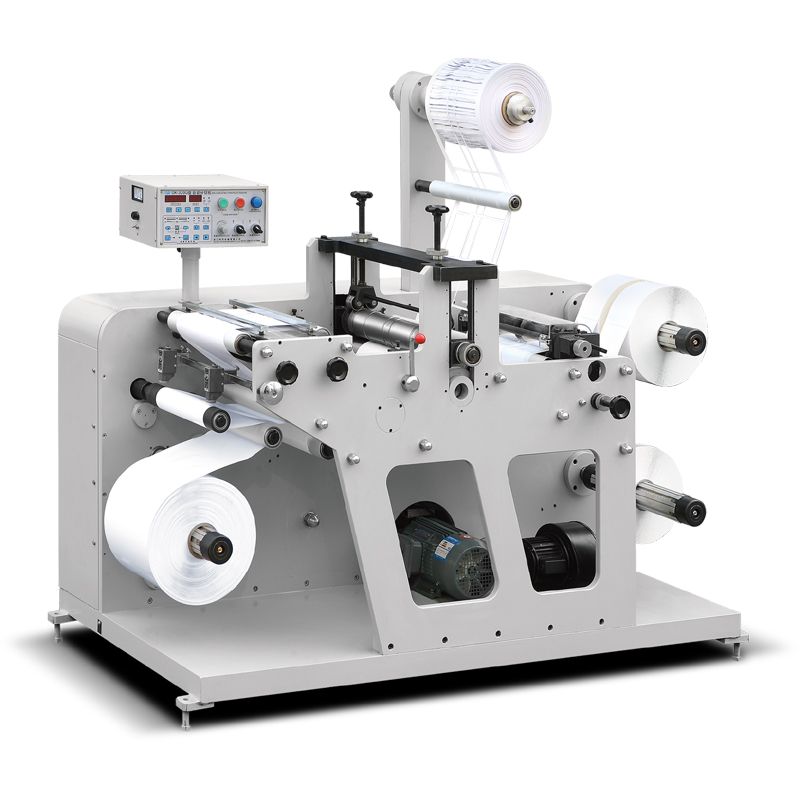

Slitting Machine with Rotary Die-cutting Station DK-320G/450G
