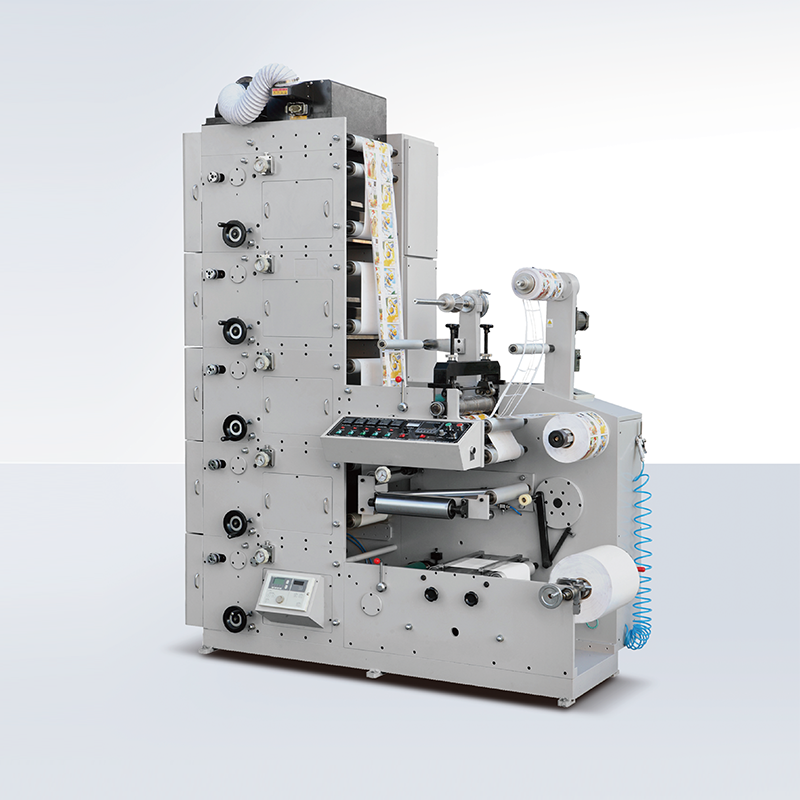

Stack Flexo Press ZBS-320/450
1. Adopts the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.
3.Each printing unit adopts 360°plate adjustment.
online service
1. Adopts the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.
3.Each printing unit adopts 360°plate adjustment.
4. Each printing unit are equipped with hot air dryer.
5.This machine comes with one die-cutting station, meaning printing and die-cutting can be finished in one process.
6. The ink rollers can be separated from the printing rollers, and keep running when the machine stops.
7. Main motor use inverter to adjust stepless speed.
8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in one process. It is an ideal machine for printing adhesive label.
Main Technical parameters
|
Model
|
ZBS - 320G
|
ZBS - 450G
|
|
Printing speed
|
60 米 / 分 (m/min)
|
60 米 / 分 (m/min)
|
|
Printing colour
|
1 - 6 色 (4 + 4 色)(colours)
|
1 - 6 色 (4 + 4 色)(colours)
|
|
Max. web width
|
320mm
|
460mm
|
|
Max. printing width
|
310mm
|
450mm
|
|
Max. unwinding diameter
|
650mm
|
650mm
|
|
Max. rewinding diameter
|
650mm
|
650mm
|
|
Printing length
|
177.8 - 355.6mm 206.3 - 460.3mm (选配 Options) 238.1 - 539.25mm (选配 Options)
|
177.8 - 355.6mm 206.3 - 460.3mm (选配 Options) 238.1 - 539.25mm (选配 Options)
|
|
Registration Accuracy
|
±0.1mm
|
±0.1mm
|
|
Dimensions（L×W×H）
|
260011003050mm (6 色)
|
260012303050mm (6 色)
|
