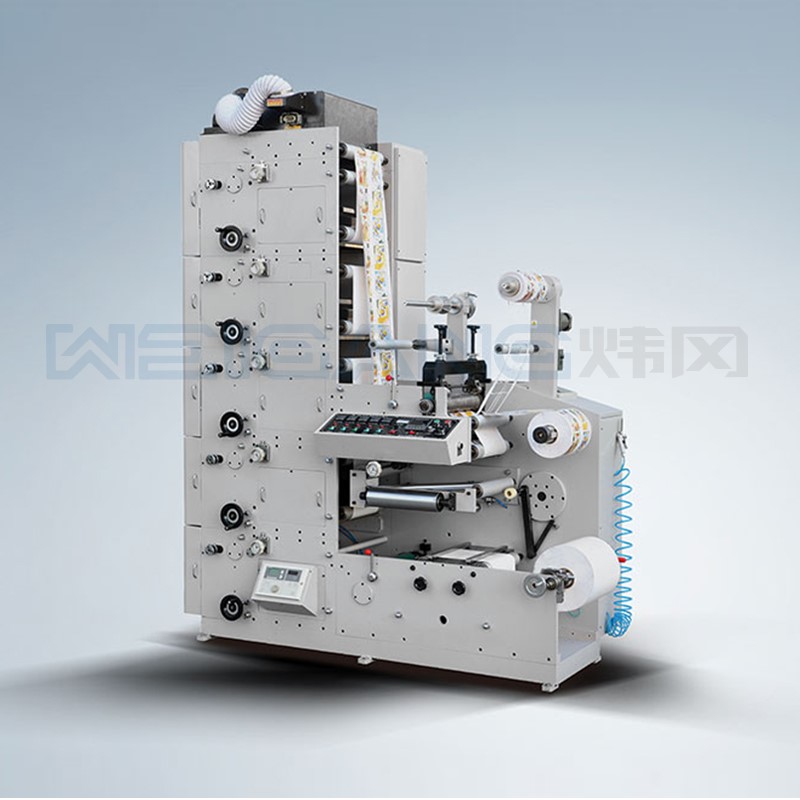

Label(logo) Flexo Printing Machine ZBS-320/450
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.
3.Each printing unit adopts 360°plate adjustment.
4.Each printing unit equips with hot air dryer.
5.This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
online service

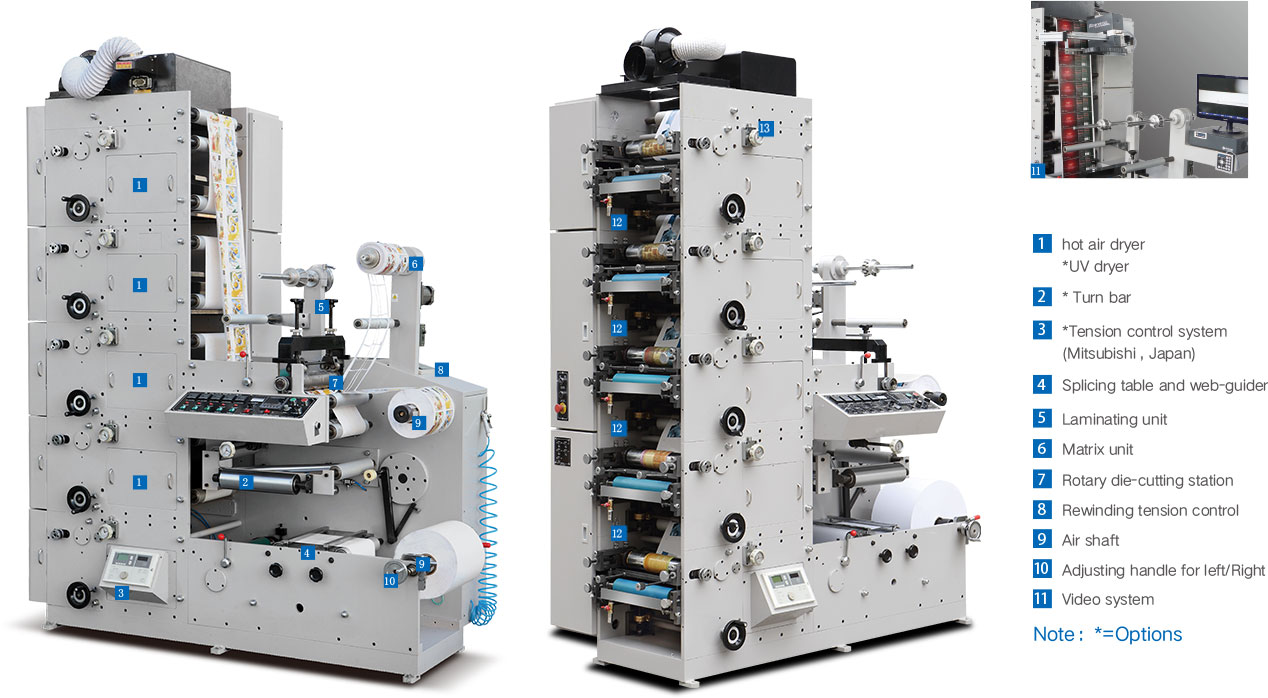

Main Features
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.
3. Each printing unit adopts 360°plate adjustment.
4. Each printing unit equips with hot air dryer.
5. This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
6. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
7. Main motor use inverter to adjust stepless speed.
8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing adhesive label.
Main Technical Parameters
|
Model |
ZBS-320 |
|
Printing Speed |
60（M/Min） |
|
Printing Color |
1-6（Colors） |
|
Max. Web Width |
320mm |
|
Max. Printing Width |
310mm |
|
Max. Unwinding Diameter |
600mm |
|
Max. Rewinding Diameter |
600mm |
|
Printing Length
|
177.8-355.6mm
222.25-539.25mm（Options） |
|
Precision of Chromatography |
±0.1mm |
|
Dimensions(L×W×H) |
2000x1100x2600mm |
|
Machine Weight |
(About) 2150KGS |
Superb Print Quality And
Excellent Performance Ratio
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Intermittent Label Offset Press ZX-320/450
ZX series machine adopts the latest servo control system which can ensure the material nip steadily and accurately. It doesn’t require printing roller change.
The operation of this machine is fast, convenient and simple. PS plate intermittent printing meets high level label demands from short run to long run. It's an ideal choice for printing highest quality labels with lowest production cost.
Rotary/Semi-rotary Label Die-cutting Machine ZM-320
ZM-320 rotary/semi-rotary label die-cutting machine is a converting machine equipped with inline slitter. This machine adopts latest Rexrtoh-Bosch (Germany) servo motors and control system, including: unwinder, web-guider, lamination, register die-cutter, slitter and dual rewinder.
Learn More
ZJR-350E/450E/650E
1. The whole machine adopts the latest servo control system with each printing unit driven by an independent servo motor. There are 23 servo motors in total (8-color machine), ensuring accurate registration during high speed running.
2. The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design significantly improves the printing quality and ease the maintenance burden.
Stack Flexo Press with Three Die-cutting Stations ZBS-320G/450G
1.Adopts the ceramic anilox cylinder to transfer the ink.
2.Each printing unit adopts 360°plate-adjustment.
3.Three die-cutting stations, the first and second die-cutting station can do double side work, the third die-cutting station can be used as sheeter.
