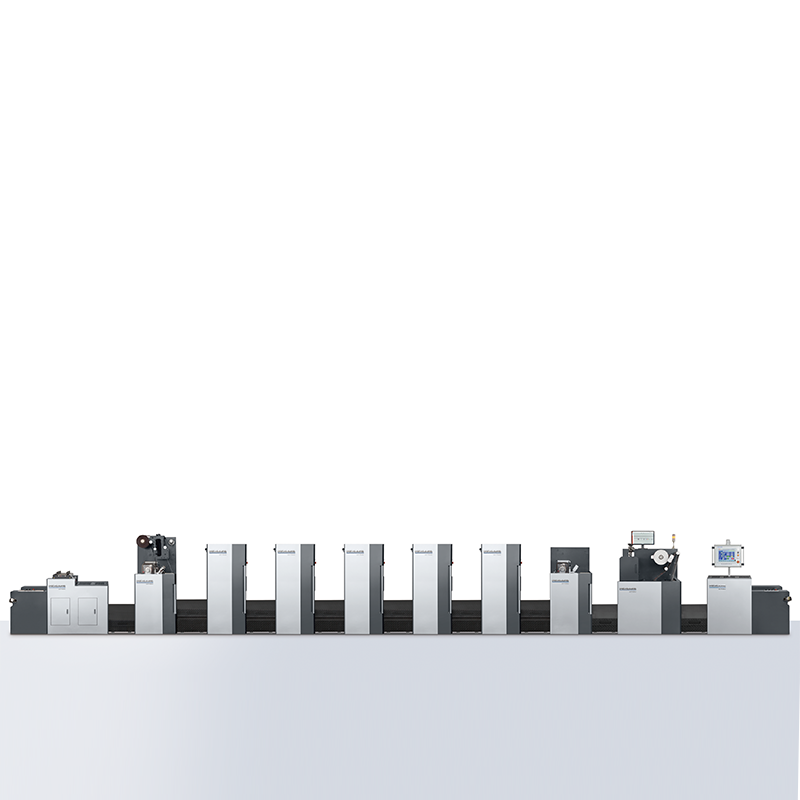

Intermittent Label Offset Press ZX-320/450
ZX series machine adopts the latest servo control system which can ensure the material nip steadily and accurately. It doesn’t require printing roller change.
The operation of this machine is fast, convenient and simple. PS plate intermittent printing meets high level label demands from short run to long run. It's an ideal choice for printing highest quality labels with lowest production cost.
online service
ZX series machine adopts the latest servo control system which can ensure the material nip steadily and accurately. It doesn’t require printing roller change.
The operation of this machine is fast, convenient and simple. PS plate intermittent printing meets high level label demands from short run to long run. It's an ideal choice for printing highest quality labels with lowest production cost.
It has super large printing area of 300x350mm, max repeat length can go up to 350mm and the max running speed can be up to 63m/min. The machine ensures multi-register print on both side by using high-precision photocells, raising label printing diversity.
|
Model
|
ZX-320
|
ZX-450
|
|
Printing speed
|
50-180 rpm
|
50-150 rpm
|
|
Printing color
|
4-10colors
|
4-10colors
|
|
Max. printing length
|
350mm
|
380mm
|
|
Max. web width
|
320mm
|
470mm
|
|
Max. printing width
|
300mm
|
450mm
|
|
Max. unwinding diameter
|
700mm
|
700mm
|
|
Max. rewinding diameter
|
700mm
|
700mm
|
|
Power supply
|
3 phase 380V
|
3 phase 380V
|
|
Total power
|
33.6kw(without UV power)
|
40kw (without UV power)（不含 UV ）
|
|
Dimensions (L×W×H)
|
1055016001800mm（六组 6colors）
|
1115017001800mm（六组 6colors）
|
|
Main machine weight
|
about 9.5t
|
about 11.5t
|
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Intermittent Label Offset Press ZX-320/450
ZX series machine adopts the latest servo control system which can ensure the material nip steadily and accurately. It doesn’t require printing roller change.
The operation of this machine is fast, convenient and simple. PS plate intermittent printing meets high level label demands from short run to long run. It's an ideal choice for printing highest quality labels with lowest production cost.
WG S350 UltraFlexible Printing Setup
1.Flexible print head combinations: Various combination choices to fit different requirements.
2.Max print speed up to 75m/min, balancing high efficiency and adaptation to various applications.
3.Max print width up to 310mm, expanding application range, better fulfilling different needs.
Flat-bed Label Die-cutting MachineWQM-320G/420
This machine adopts accurate flat die-cutting system, controlled by servo motor.
Two sensors are used to control the web-guider and one sensor to follow the registration mark. It's suitable for die-cutting of all kinds of adhesive labels and hologram labels. It's the ideal converting machine for flexo printing machine, screen printing machine and gravure printing machine.
Label(logo) Flexo Printing Machine With Three Die-cutting Stations-ZBS-320G/450G
1.Adopt the ceramic anilox cylinder to transfer the ink.
2.Each printing unit adopts 360° plate-adjustment.
3.Three die-cutting stations, the first and second die-cutting station can do double sides working, the third die-cutting station can be used as sheeter.
