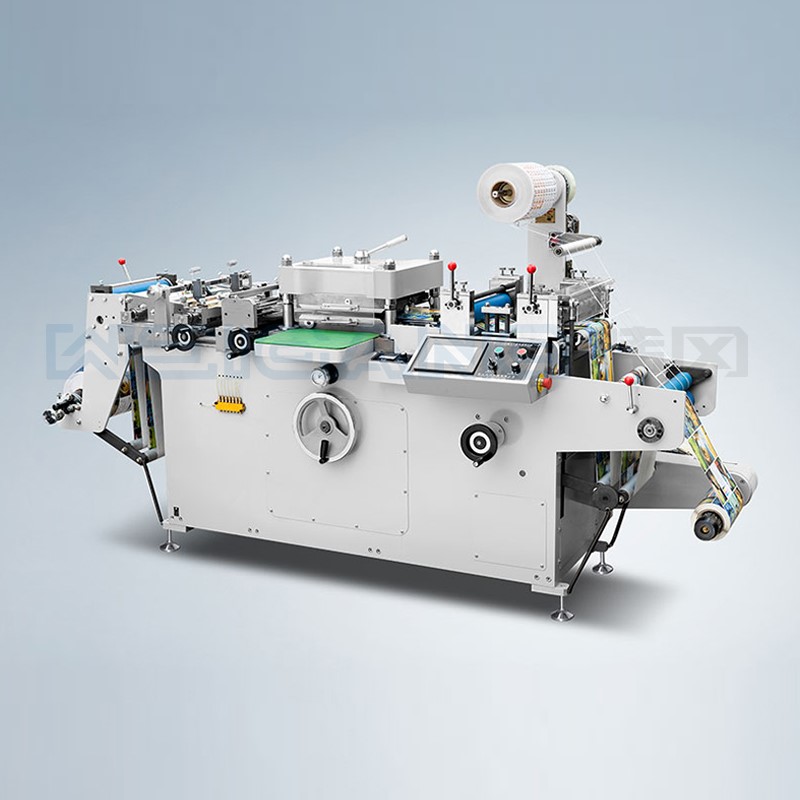

Adhesive Label(logo) Die-cutting Machine WQM-320G/420
This machine adopts accurate flat die-cutting system, controlled by servo motor.
There are two sensors to control the web-guider and one sensor to follow the registration mark. It’s suitable for die-cutting all kind of adhesive labels and hologram labels. It’s the ideal converting machine for flexo printing machine, screen printing machine and gravure printing machine.
online service
Main Features
This machine adopts accurate flat die-cutting system, controlled by servo motor.
There are two sensors to control the web-guider and one sensor to follow the registration mark. It’s suitable for die-cutting all kind of adhesive labels and hologram labels. It’s the ideal converting machine for flexo printing machine, screen printing machine and gravure printing machine.
Main Technical Parameters
|
Model |
WQM-320G |
WQM-420 |
|
Cutting Speed |
20-220(T/Min) |
20-210(T/Min) |
|
Max. Unwinding Diameter |
500mm |
500mm |
|
Max. Web Width |
320mm |
420mm |
|
Max. Die-Cutting Width |
300mm |
400mm |
|
Max. Die-Cutting Length |
300mm |
400mm |
|
Accuracy |
±0.15mm |
±0.15mm |
|
Total Power |
3.5KW |
4.5KW |
|
Power Supply |
220v±10% |
380V |
|
Machine Weight |
(About)1700KGS |
(About)2300KGS |
|
Dimensions(L×W×H) |
2600x990x1400mm |
2950×1350×1400mm |

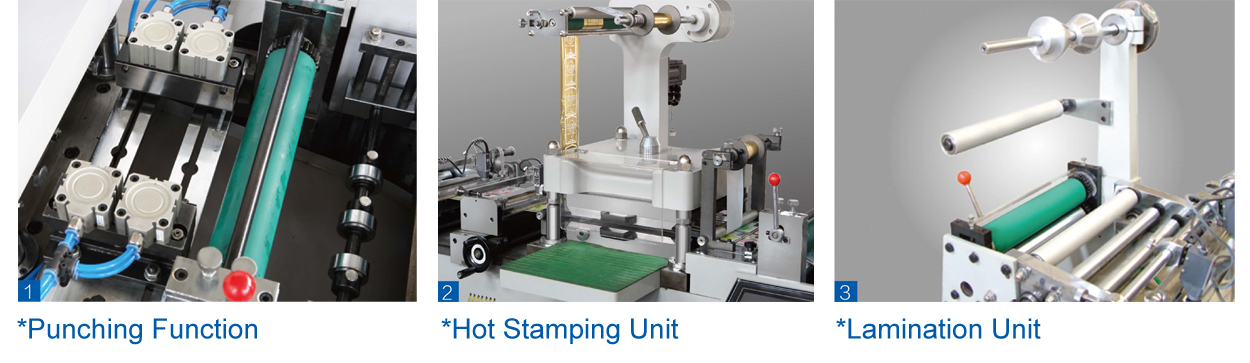

*Options：
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Adhesive Label(logo) Die-cutting Machine WQM-320G/420
This machine adopts accurate flat die-cutting system, controlled by servo motor.
There are two sensors to control the web-guider and one sensor to follow the registration mark. It’s suitable for die-cutting all kind of adhesive labels and hologram labels. It’s the ideal converting machine for flexo printing machine, screen printing machine and gravure printing machine.
Rotarysemi-rotary Label Die-cutting Machine ZM-320
ZM-320 rotary/semi-rotary label die-cutting machine is new developed converting machine equipped with inline slitter.This machine adopts latest Rexrtoh-Bosch (Germany) servo motors and control system, including: unwinder, web-guider, lamination, register die-cutter, slitter and dual rewinder. The register die-cutting system is our patented product. It can be full rotary or semi-rotary die-cutter according to the production requirement.
Learn More

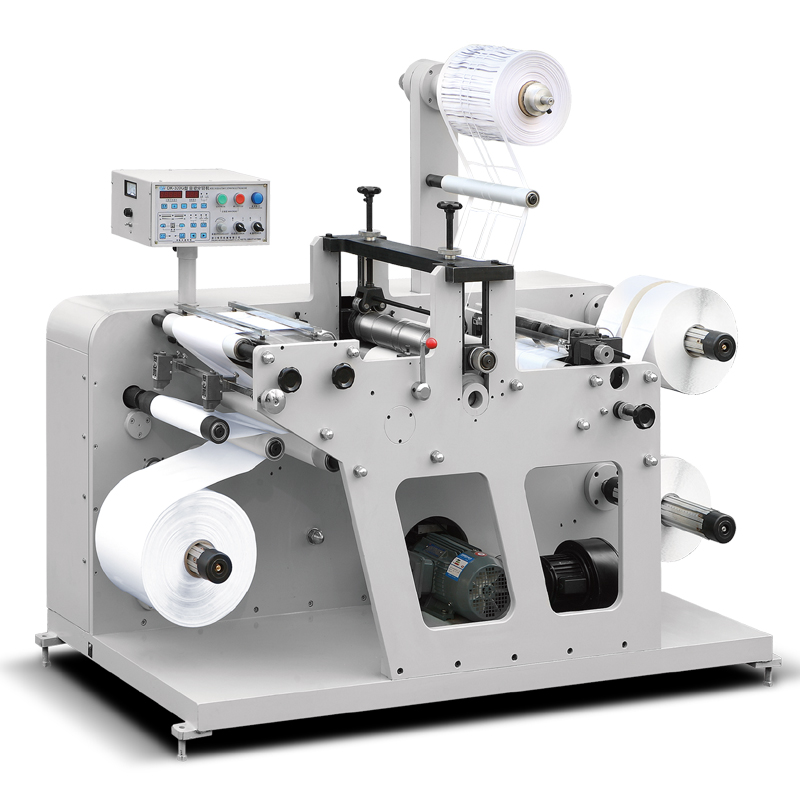

Slitting Machine with Rotary Die-cutting Station DK-320G/450G
