Rotarysemi-rotary Label Die-cutting Machine ZM-320
ZM-320 rotary/semi-rotary label die-cutting machine is new developed converting machine equipped with inline slitter.This machine adopts latest Rexrtoh-Bosch (Germany) servo motors and control system, including: unwinder, web-guider, lamination, register die-cutter, slitter and dual rewinder. The register die-cutting system is our patented product. It can be full rotary or semi-rotary die-cutter according to the production requirement.
online service
Main Features
ZM-320 rotary/semi-rotary label die-cutting machine is new developed converting machine equipped with inline slitter.This machine adopts latest Rexrtoh-Bosch (Germany) servo motors and control system, including: unwinder, web-guider, lamination, register die-cutter, slitter and dual rewinder. The register die-cutting system is our patented product. It can be full rotary or semi-rotary die-cutter according to the production requirement. When ZM-320 runs in semi-rotary mode, the tension among unwinder, web-guider and rewinder will be the same (different from traditional intermittent type), the material will not run away during the die-cutting. Semi-rotary die-cutting unit adopts one big magnetic cylinder, if you have different applications, the only job is to change the flexible die. If the job is large quantity,then you can choose full rotary die-cutting mode(even in full rotary die-cutting mode,the registration is available and perfect), it will highly increase the die-cutting output. ZM-320 machine has the characteristics of fast speed, super accuracy ,easy operation, high efficiency and less cost. It’s good for all kind of label die-cutting jobs,including short run and long run. ZM-320 rotary/semi-rotary label die-cutting machine committes to make the maximum profit for you, it's an ideal converting machine for the printing house.
Main Technical Parameters
|
Model |
ZM-320 |
|
Max. Die-Cutting Speed (Rotary) |
120m/min |
|
Max. Die-Cutting Speed (Semi-Rotary) |
65m/min |
|
Max. Die-Cutting Length (Rotary) |
190.5-539.75mm |
|
Max. Die-Cutting Length (Semi-Rotary) |
100-350mm |
|
Max. Die-Cutting Width |
300mm |
|
Max. Web Width |
320mm |
|
Max. Unwinder Dia. |
700mm |
|
Max. Rewinder Dia. |
600mm |
|
Die-Cutting Accuracy |
±0.1mm |
|
Slitting Width |
≥20mm |
|
Power Supply |
380V 3P |
|
Weight |
2600KGS (One Die Cutting Unit+One Slitting Unit) |
|
Dimensions(L×W×H) |
3220×1680×1660mm
(One Die Cutting Unit+One Slitting Unit) |
Note: can be made according to buyer's requirement

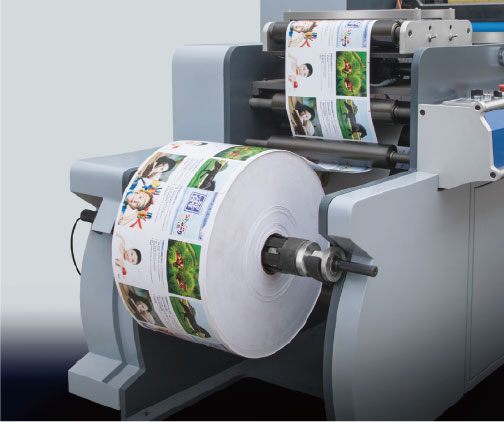

Unwinder with Pneumatic Lift
Web-guider

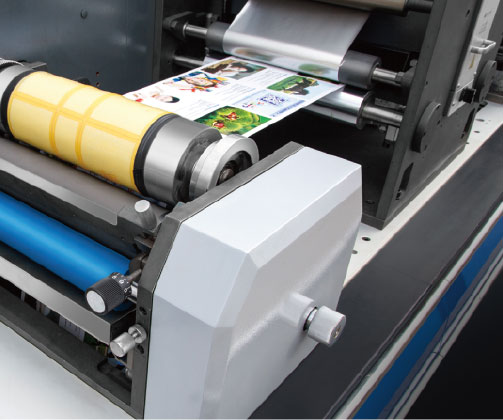

Flexo(Varnish) Unit
Cold Stamping Unit

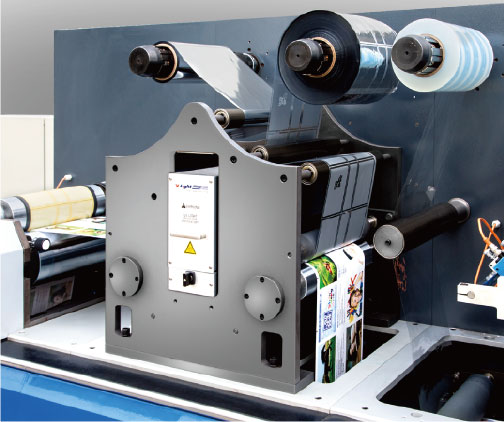

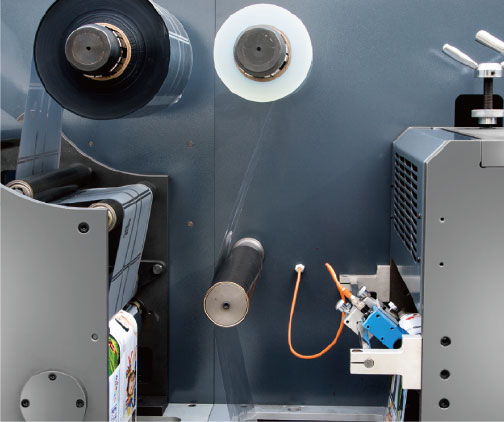

Lamination Unit

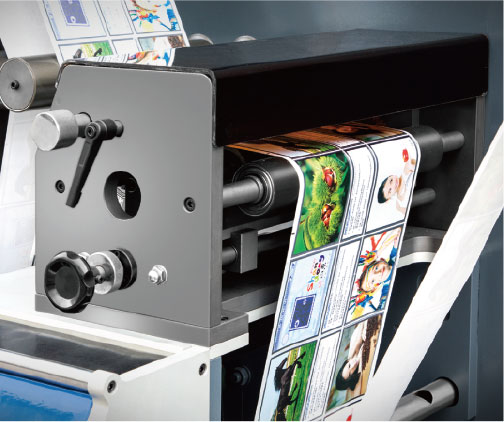

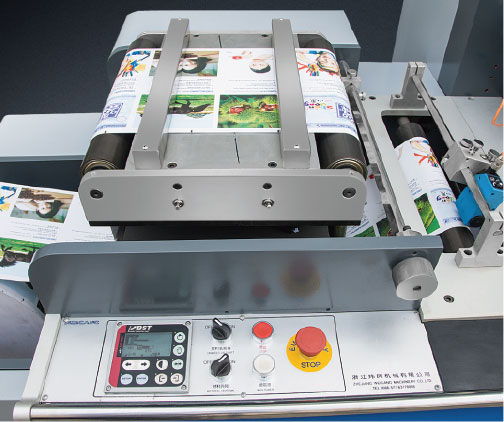

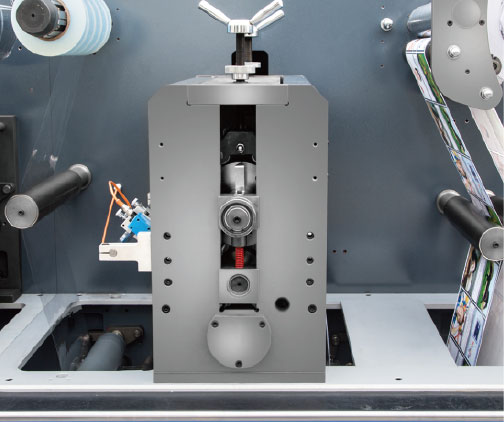

Die-cutting Unit
Slitting Unit

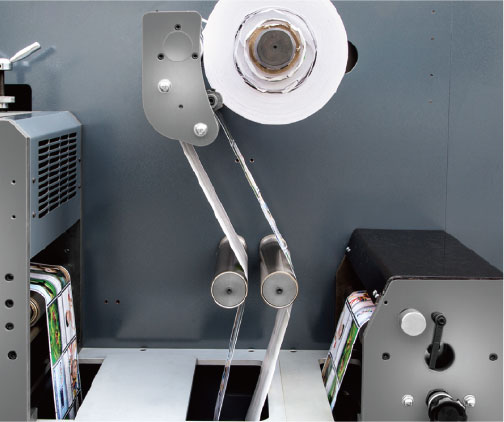

Matrix Unit

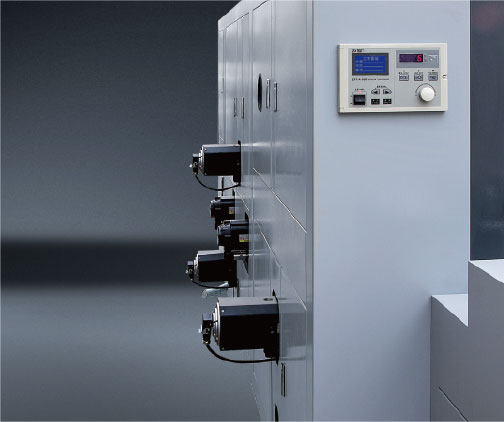

Fully Servo Shaftless Driving System

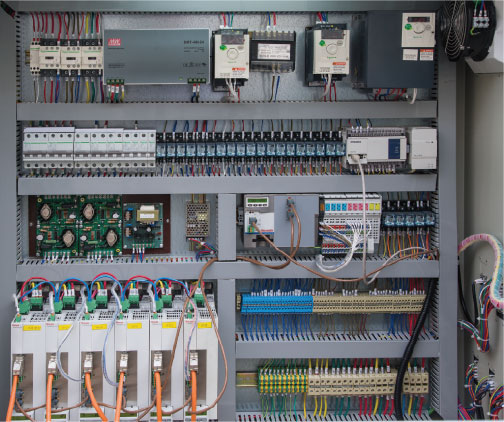

Germany Control System
