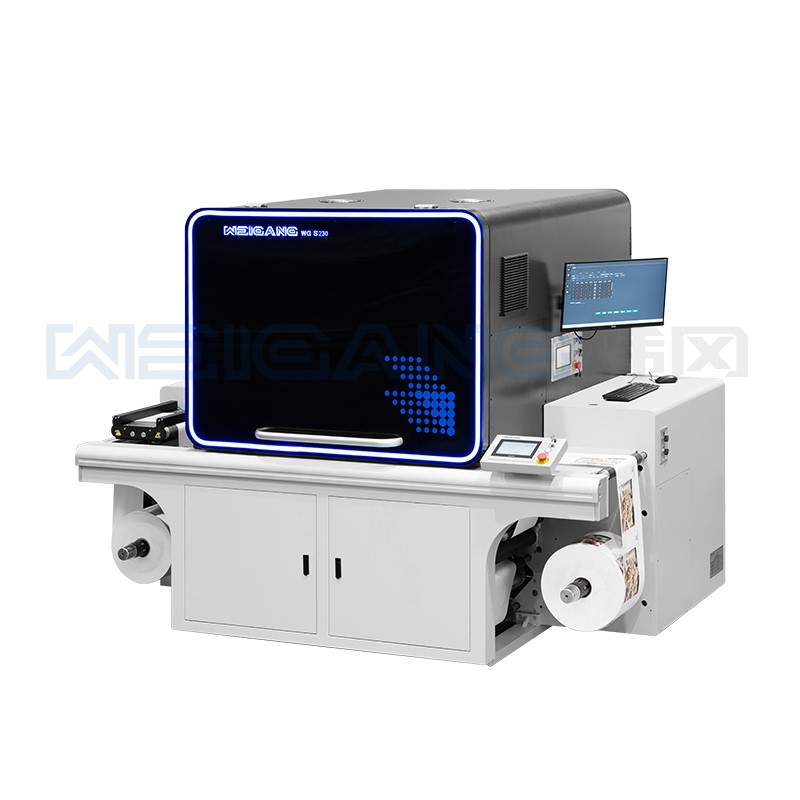

WG S230 Digital Printing Machine
1. Print heads combination are flexible: multiple combination per requirements.
2. Max print speed up to 60m/min which is high efficiency and suitable for variable job application.
3. Max print width up to 230mm which expands application range and increases flexibility.
online service
Main Features
1. Print heads combination are flexible: multiple combination per requirements.
2. Max print speed up to 60m/min which is high efficiency and suitable for variable job application.
3. Max print width up to 230mm which expands application range and increases flexibility.
4. Adopts single pass solution, non-contact print, single pass print without plate making.
5. Max print resolution up to 1200*600dpi, 900*600dpi and 600*600dpi are setable; dedicate print with vivid color.
6. Highly integrated software enables fast order and very short run job.
7. Touch screen interface easy to understand and operate.
8. Moisturizing, and print head anti-collision, makes machine easy and simple maintenance.
9. Compact model, small space request, can be adapted to various applications.
10. Equips with high precision piezo print head, has longer using life
11. Consistent printing quality, supporting 24/7 production.
Main Technical Parameters
|
Model |
WG S230 |
|
Print Control |
|
|
Inkjet Head |
Piezo print head,Greyscale level |
|
Print Resolution |
600*600dpi/900*600dpi/1200*600dpi |
|
Print Speed |
High resolution mode(1200*600dpi): 30m/min |
|
|
Normalmode(900*600dpi): 45m/min |
|
|
Single bit mode(600*600dpi): 60m/min |
|
Print Data |
Fix data, variable data (option) |
|
Print Head Model |
EPSON S3200 U1/U3 |
|
Ink |
|
|
Ink Type |
UV Ink |
|
Ink Color |
CMYK,white, varnish and panton (option) |
|
Ink Tank |
5L/color |
|

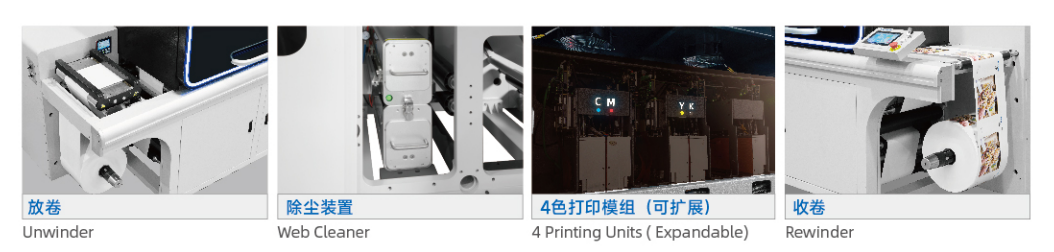

Substrate System |
|
|
Unwinder/Rewinder |
Servo control, tension detector, |
|
|
Web break protect, roll dia detector, etc. |
|
Max Unwinder/Rewinder Dia. |
600mm |
|
Substate Thickness |
0.04-0.35mm |
|
Max Print Width |
230mm(Option 350mm) |
|
Web Cleaner |
Double side contacted type |
|
Static Eliminator |
Static eliminator bar |
|
Maxweb Width |
360mm |
|
Drying System |
|
|
Led Dryer |
2 Colors one-curing LED drying system |
|
Complete Curing |
UV dryer in the end |
|
Data Transfer |
|
|
Connector |
XFP |
|
Control Panel |
Touch screen |
|
Dimension |
|
|
Overal Size |
2560*1700*1950mm |
|
Floor Space |
4.5 m2 |
|
Installation Conditions |
|
|
Surroundings |
Temperature: 20-30degree; humidity: 20-50% |
|
Power Supply |
380V 3P |
|
|
(Machine: 8KW; LED/UV for inkjet:9KW) |
|
Air Supply |
0.6 Mpa |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
WG S230 Digital Printing Machine
1. Print heads combination are flexible: multiple combination per requirements.
2. Max print speed up to 60m/min which is high efficiency and suitable for variable job application.
3. Max print width up to 230mm which expands application range and increases flexibility.

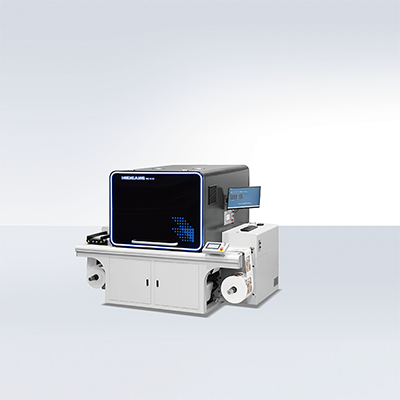

WG S350 Digital Printing Machine
