WG S350 Digital Printing Machine
1. Print heads combination are flexible: multiple combination per requirements;
2. Max print speed up to 60m/min which is high efficiency and suitable for variable job application;
3. Max print width up to 350mm which expands application range and increases flexibility.
online service
Flexible And High Efficiency
1. Print heads combination are flexible: multiple combination per requirements ;
2. Max print speed up to 60m/min which is high efficiency and suitable for variable job application ;
3. Max print width up to 350mm which expands application range and increases flexibility.
Stable And Reliable Printing Quality
1.Equips with high precision piezo print head, has longer using life ;
2. Consistent printing quality, supporting 24/7 production .
Exquisite And Delicate Printing Effect
1. Adopts single pass solution, non-contact print, single pass print without plate making;
2. Max. print resolution up to 1200*600dpi,600*600dpi and 900*600dpi are setable;
dedicate print with vivid color;
3. CMYK+pantone cover max colors, white and varnishing provides value added effect .
Convenient And Fast Operation
1. Highly integrated software enables fast order and very short run job ;
2. Touch screen interface easy to understand and operate;
3. Automatic cleaning, moisturizing, and print head anti-collision, make machine easy and simple maintenance.
Main Technical Parameters
|
Model |
WG S350 |
|
Print Control |
|
|
Inkjet Head |
Piezo print head,Greyscale level |
|
Print Resolution |
600*600dpi/900*600dpi/1200*600dpi |
|
Print Speed |
High resolution mode(1200*600dpi): 30m/min |
|
|
Normalmode(900*600dpi): 45m/min |
|
|
Single bit mode(600*600dpi): 60m/min |
|
Print Data |
Fix data, variable data (option) |
|
Print Head Model |
EPSON S3200 U1/U3 |
|
Ink |
|
|
Ink Type |
UV Ink |
|
Ink Color |
CMYK,white, varnish and panton (option) |
|
Ink Tank |
5L/color |
|
Substrate System |
|
|
Unwinder/Rewinder |
Servo control, tension detector, |
|
|
Web break protect, roll dia detector, etc. |
|
Max Unwinder/Rewinder Dia. |
700mm |
|
Substate Thickness |
0.04-0.35mm |
|
Max Print Width |
350mm |
|
Web Cleaner |
Double side contacted type |
|
Static Eliminator |
Static eliminator bar |
|
Maxweb Width |
370mm |
|
Drying System |
|
|
Led Dryer |
White color and special effect: 1 color/dryer; |
|
|
CMYK and panton: 2 colors/dryer |
|
Complete Curing |
UV dryer in the end |
|
Cleaning System |
|
|
Cleaning Unit |
Auto cleaning system |
|
Data Transfer |
|
|
Connector |
XFP |
|
Control Panel |
Touchscreen |
|
Dimension |
|
|
Overal Size(10C) |
7200X2500X2400mm |
|
Floor Space |
18m2 |
|
Installation Conditions |
|
|
Surroundings |
Temperature: 20-30degree; humidity: 20-50% |
|
Power Supply |
380V 3P |
|
|
(Machine: 25kw; LED/UV for inkjet:20kw) |
|
Air Supply |
0.6 Mpa |
-

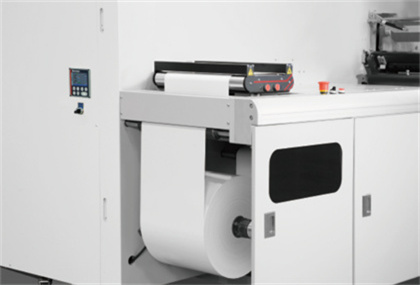

Unwinding Unit
-

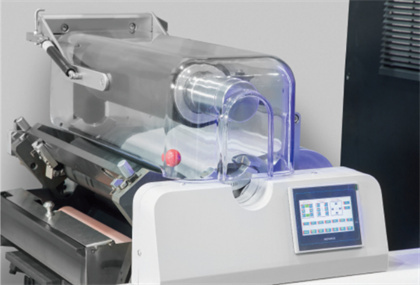

Flexo Printing Unit
-

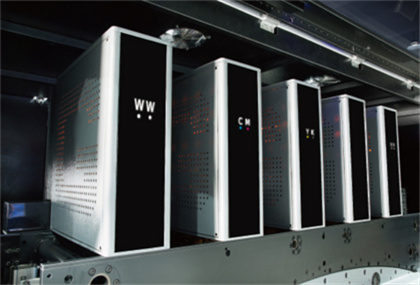

Digital Unit(Max 10C)
-

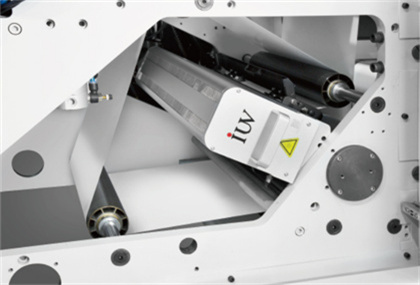

UV Dryer System
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

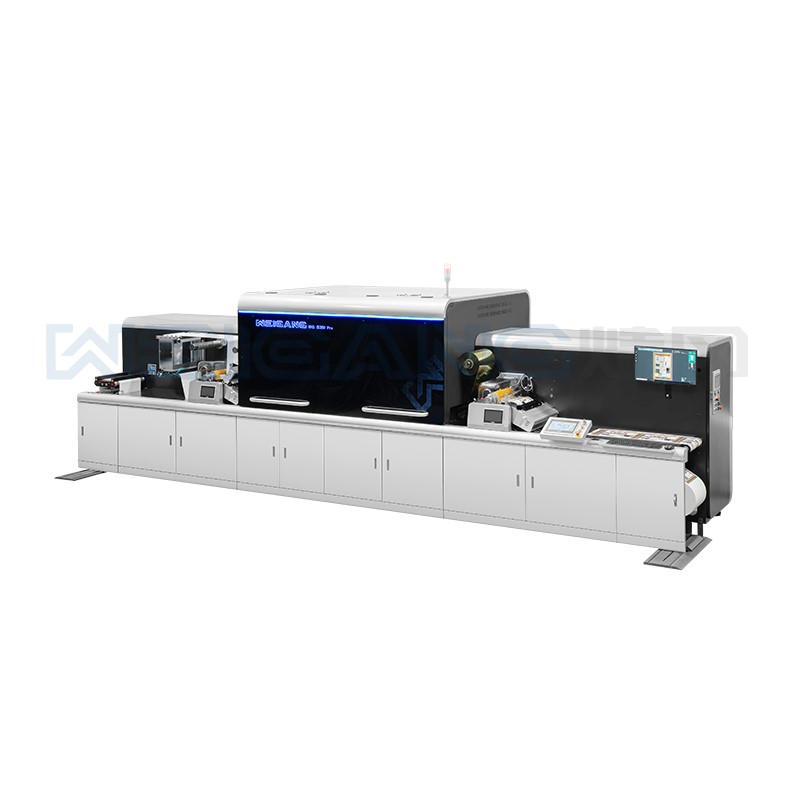

ZJR S350 Pro Hybrid (Flexo/Digital) Printing Machine
1. The whole machine adopts the latest servo control system and each printing unit is driven by independent servo motor, which ensure the accurate registration during high speed production.
2. The printing roller adopts sleeve type without gear which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduces the maintenance.
3. Motorised pressure adjustment system between anilox roller to plate and plate to substate makes the pressure setting very easy and fast, which greatly improve the efficiency.
WG S230 Digital Printing Machine
1. Print heads combination are flexible: multiple combination per requirements.
2. Max print speed up to 60m/min which is high efficiency and suitable for variable job application.
3. Max print width up to 230mm which expands application range and increases flexibility.

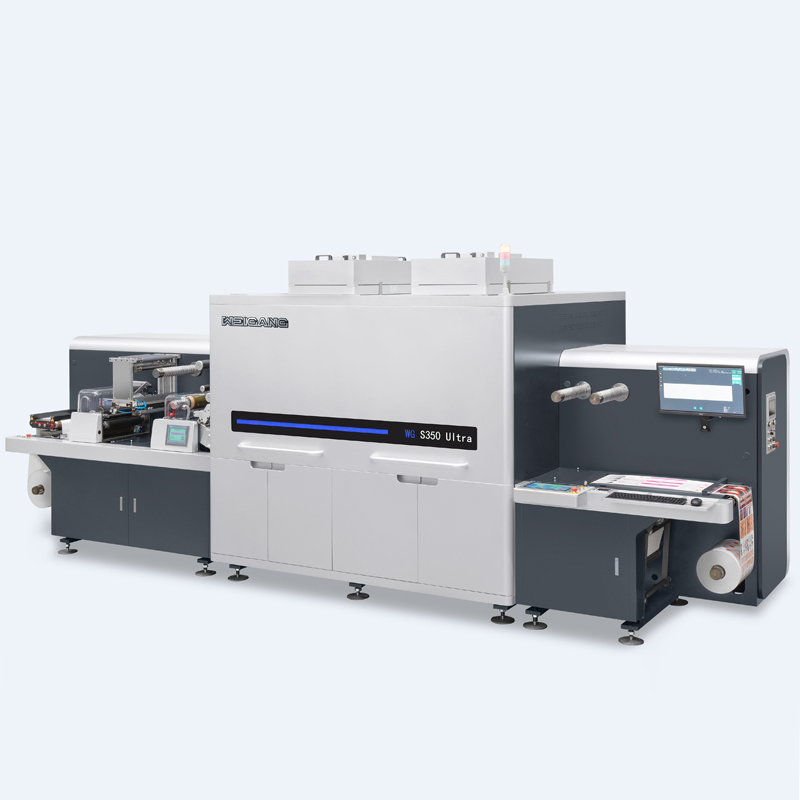

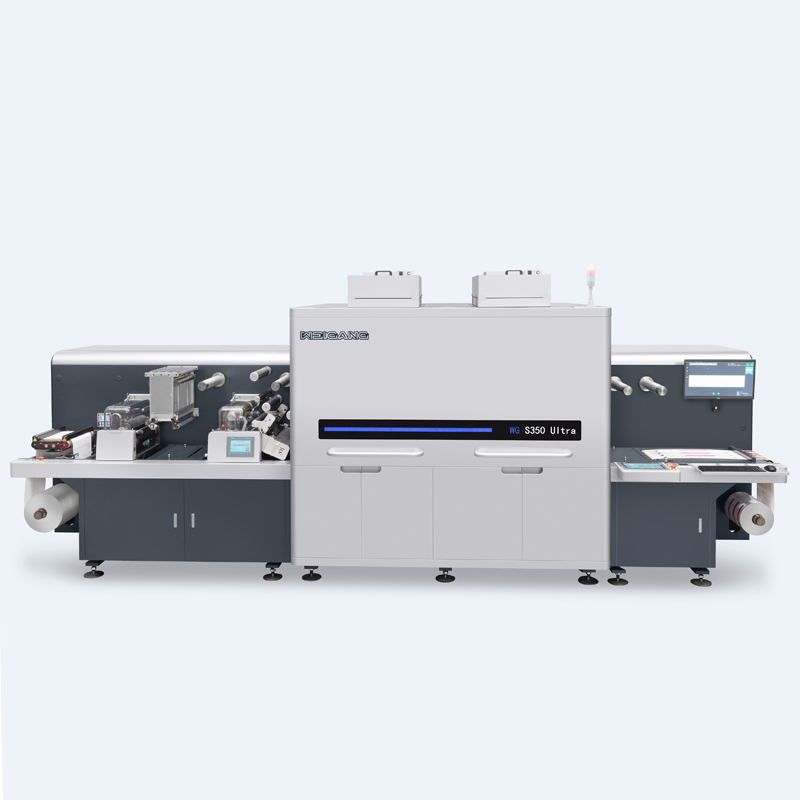

WG S350 Digital Printing Machine
