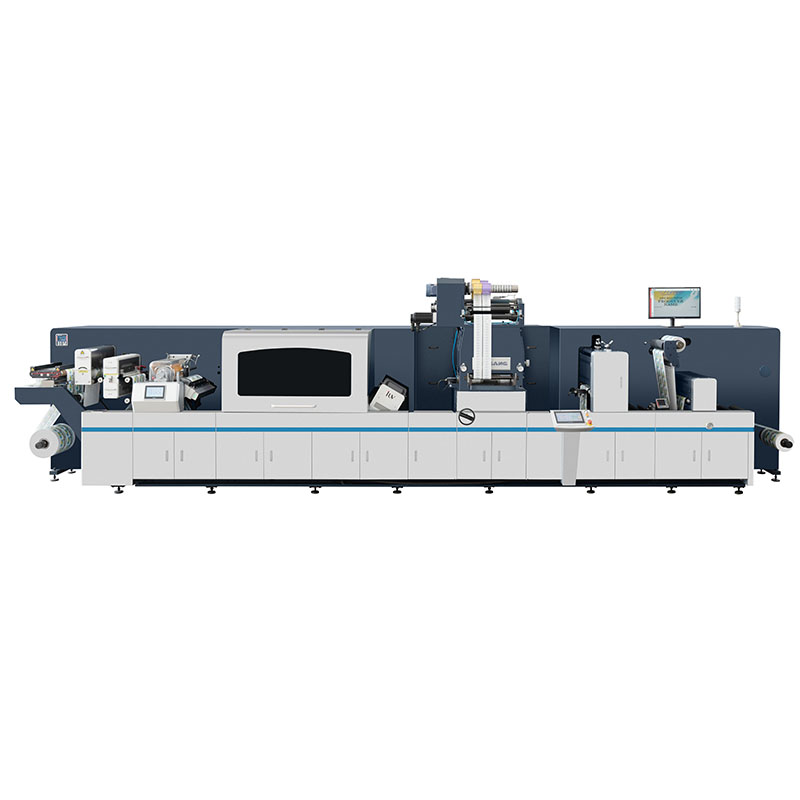

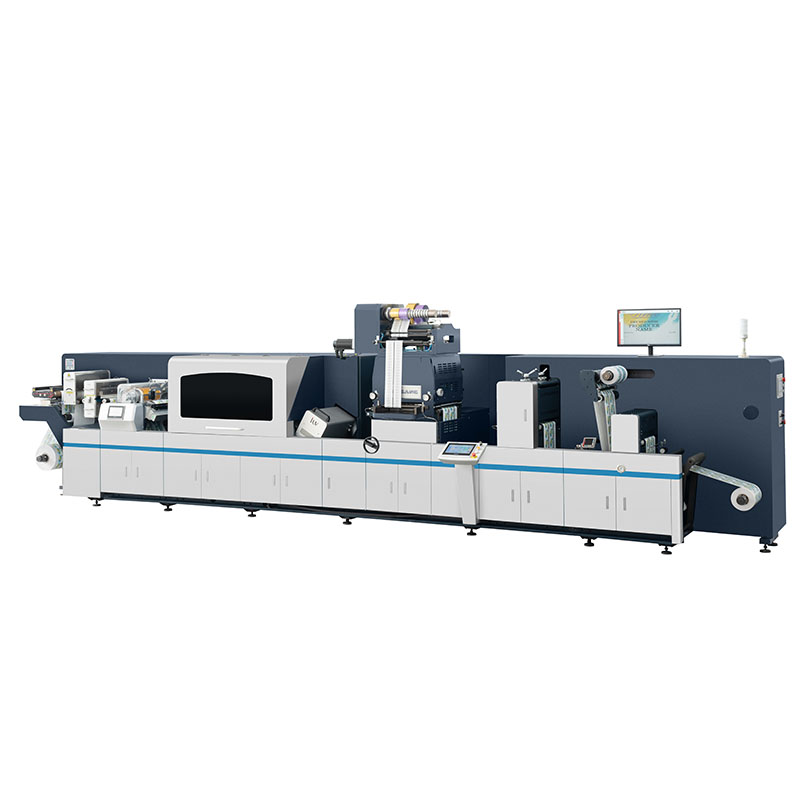

Multifunctional Converting & Finishing Machine
The WGHZ‑350 is not a fixed‑function machine. It is a converting platform that can be built around the product mix. From core finishing to high‑value embellishment, modules can be selected according to substrates, run lengths, process complexity and future growth—without forcing investment in functions the business does not need.
online service
The hidden Cost of Complex Labels is Often the Space between Processes
When printing, embellishment, die‑cutting and slitting are split across separate machines, the loss is not limited to time. Material, labor and register stability are affected as well. The WGHZ‑350 uses independent full‑servo drives and a modular architecture to connect multiple converting processes on one configurable line. Full‑rotary and intermittent modes help complex labels move from web to finished product with fewer transfers, less waiting and less repeated register setup.
Four Changes Created by Integration
- Shorter Production Path
Complete multiple processes inline and reduce queues between standalone machines.
- Balance Run Lengths
Use full rotary for productivity and intermittent operation for flexible job changes and special processes.
- Lower Process Loss
Reduce remounting, repeated register setup and start‑stop material waste.
- Invest Based on Your Business Needs
Add functions that support real jobs today while preserving room for future expansion.
 |
 |
 |
|

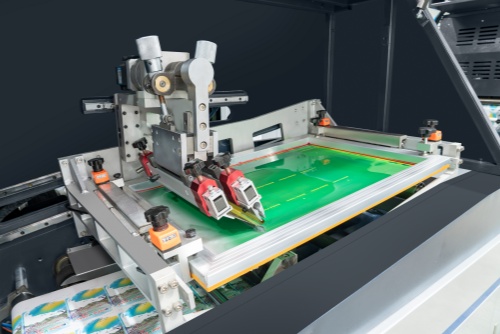

Screen Printing Unit |

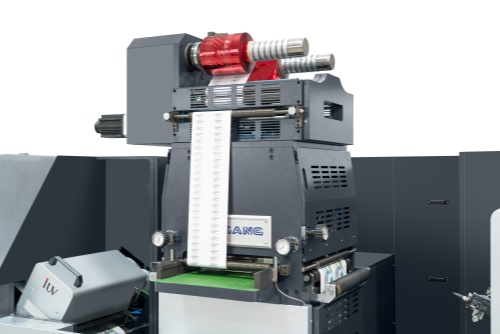

Hot Stamping & Embossing Unit |

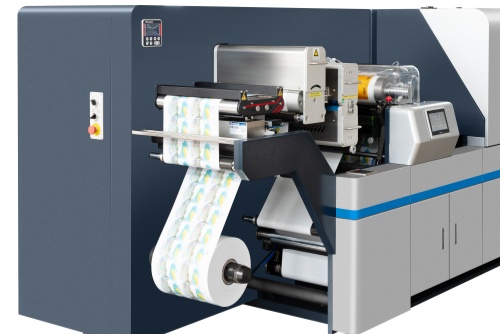

Unwinder |
 |
 |
 |
|

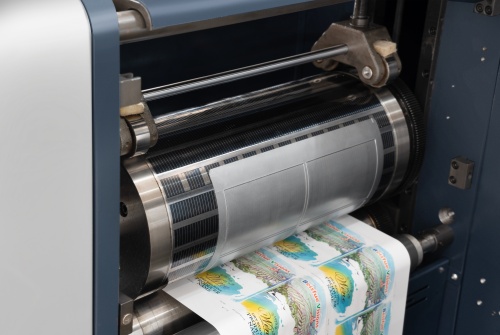

Intermittent Flexo Printing |

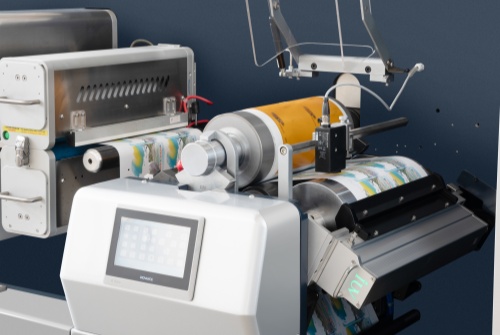

Intermittent Die Cutting |

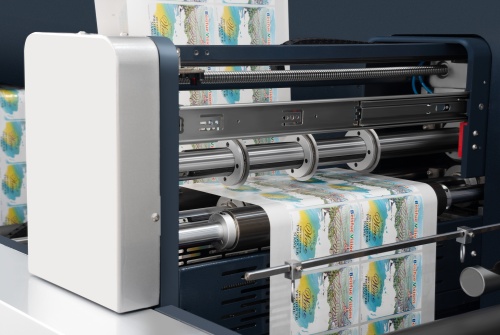

Automatic Slitting with Knife Positioning |
Key Specifications:
Model
WGHZ‑350
Max. Web Width
350 mm
Max. Unwinding Diameter
800 mm
Max. Rewinding Diameter
800 mm
Max. Flat‑bed Die‑cutting Area
350 × 350 mm
Flat‑bed Die‑cutting Accuracy
±0.15 mm
Screen Printing Length
450 mm
Intermittent Flexo Repeat Length
76‑190T
Intermittent Rotary Die‑cutting Repeat Length
76‑190T
Max. Intermittent Die‑cutting Speed
65 m/min
Min. Slit Width
20 mm
