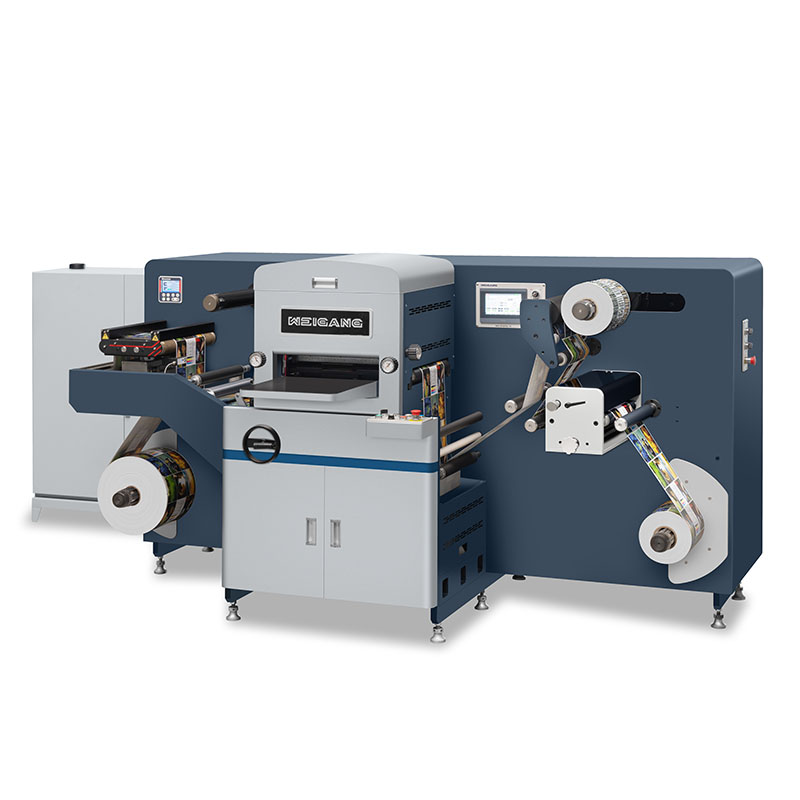

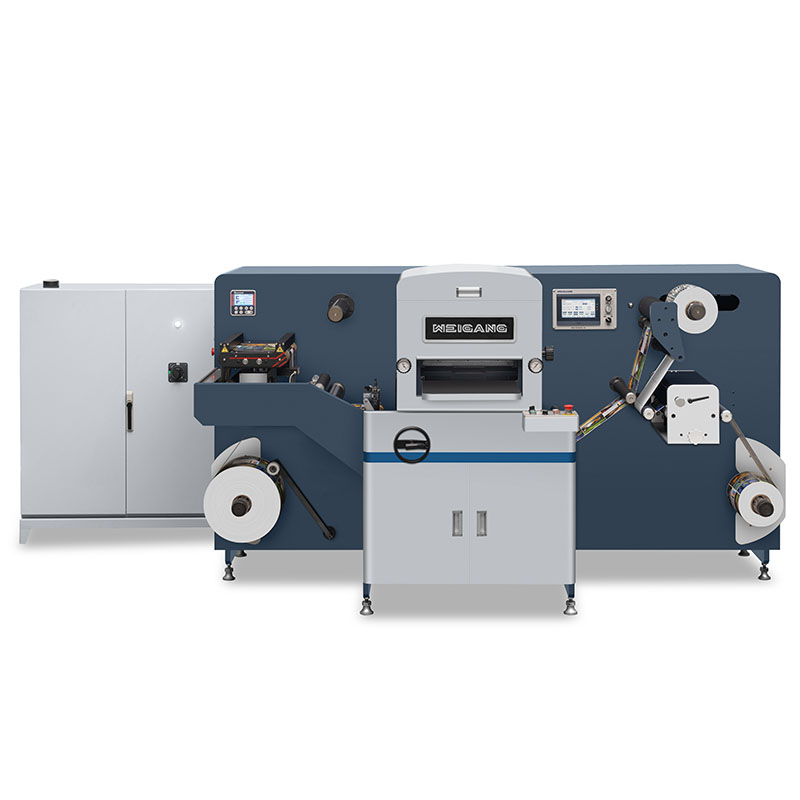

Flatbed Label Die-Cutting Machine
Die‑cutting and hot foil stamping define the final label,and whether the job can be delivered consistently.
The WGMQ‑370 combines a high‑precision servo drive with register accuracy of ±0.15 mm and inline die‑cutting with hot foil stamping. Output up to 400 strokes per minute and a compact footprint help converters build dependable, value‑added finishing capacity for self‑adhesive paper labels, polyester film labels and holographic security labels.
online service
Core Configuration
- High‑precision servo drive with register accuracy up to ±0.15 mm.
- Inline die‑cutting and hot foil stamping.
- Die‑cutting speed up to 400 strokes per minute.
- Compact footprint for integration into different production environments.
- Suitable for self‑adhesive paper labels, polyester film labels and holographic security labels.
Key Specifications
| Model | WGMQ‑370 |
|---|---|
| Max. die‑cutting speed | 400 / (rpm) |
| Max. web width | 370mm |
| Max. die‑cutting area | 350 × 350mm |
| Max. unwinding diameter | 700mm |
| Max. rewinding diameter | 700mm |
| Min.slitting width | 20mm |
| Accuracy | ±0.15mm |
| Total power | 17KW |
| Power supply | 330V |
| Machine weight | ≈3000kg |
| Dimensions (L×W×H) | 2,650×1,650×1,450mm |
