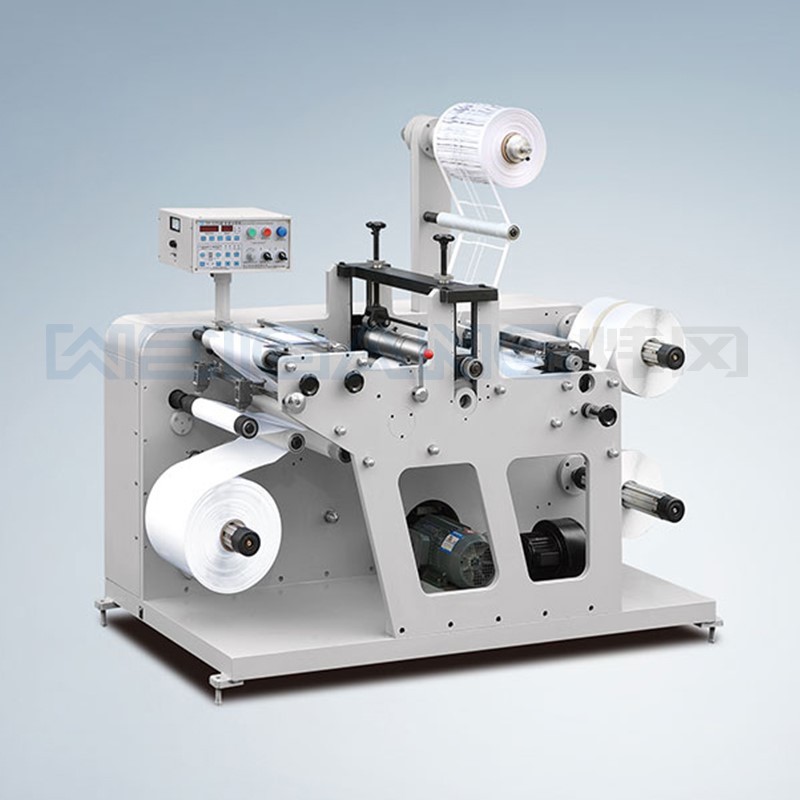

Slitting Machine with Rotary Die-cutting Station DK-320G/450G
DK-320G Slitting machine with rotary die-cutting function is upgraded from DK-320 slitting machine, it is equipped with high accuracy rotary die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, laminating (optional), slitting can be finished in one process. It has the function of automatic meter counting, automatic stop and web guiding by photocell. The machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running etc.
online service
Main Features
DK-320G Slitting machine with rotary die-cutting function is upgraded from DK-320 slitting machine, it is equipped with high accuracy rotary die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, laminating (optional), slitting can be finished in one process. It has the function of automatic meter counting, automatic stop and web guiding by photocell. The machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running etc.
Main Technical Parameters
|
Model
|
DK - 320G
|
DK - 450G
|
|
Slitting speed
|
100m/min
|
100m/min
|
|
Die - cutting speed
|
100m/min
|
100m/min
|
|
Die - cutting Repeat Length
|
190.5 - 539mm
|
190.5 - 539mm
|
|
Max. web width
|
320mm
|
450mm
|
|
Max. unwinding diameter
|
500mm
|
500mm
|
|
Max. rewinding diameter
|
480mm
|
480mm
|
|
Dimensions (L×W×H)
|
16009001530mm
|
160010301530mm
|
|
Machine weight
|
约 (about) 850kgs
|
约 (about) 974kgs
|

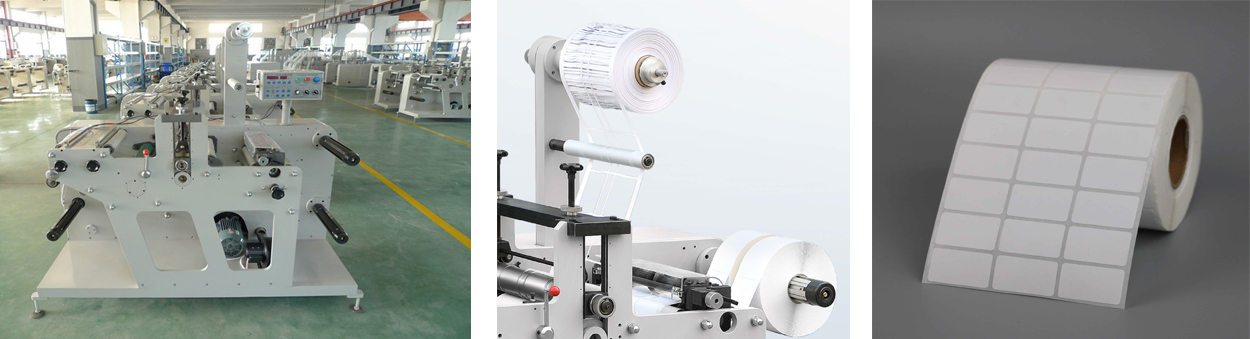

Efficient Equipment For Blank Label
