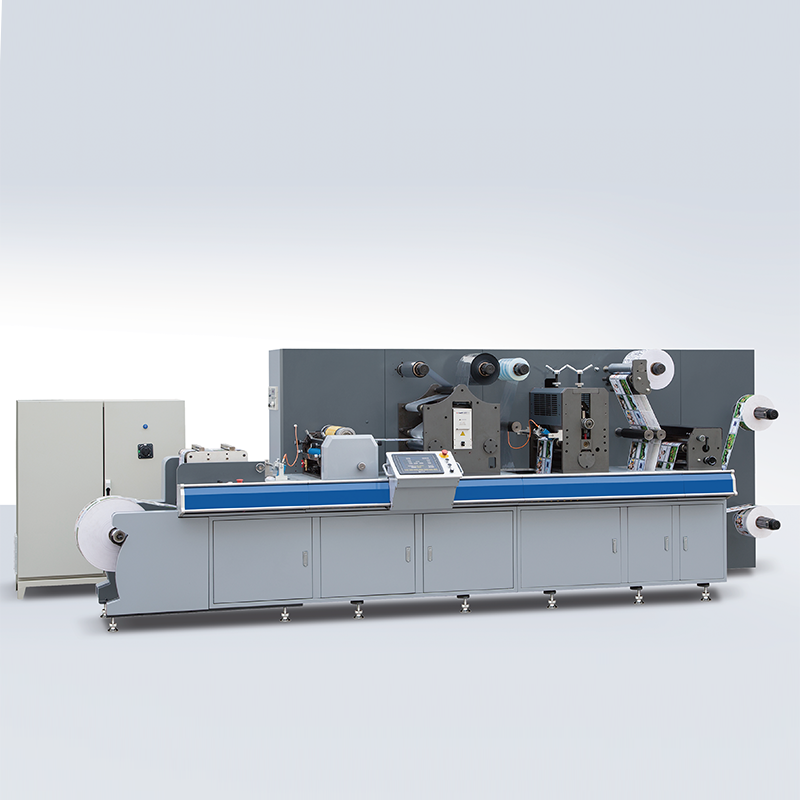

Rotary/Semi-rotary Label Die-cutting Machine ZM-320

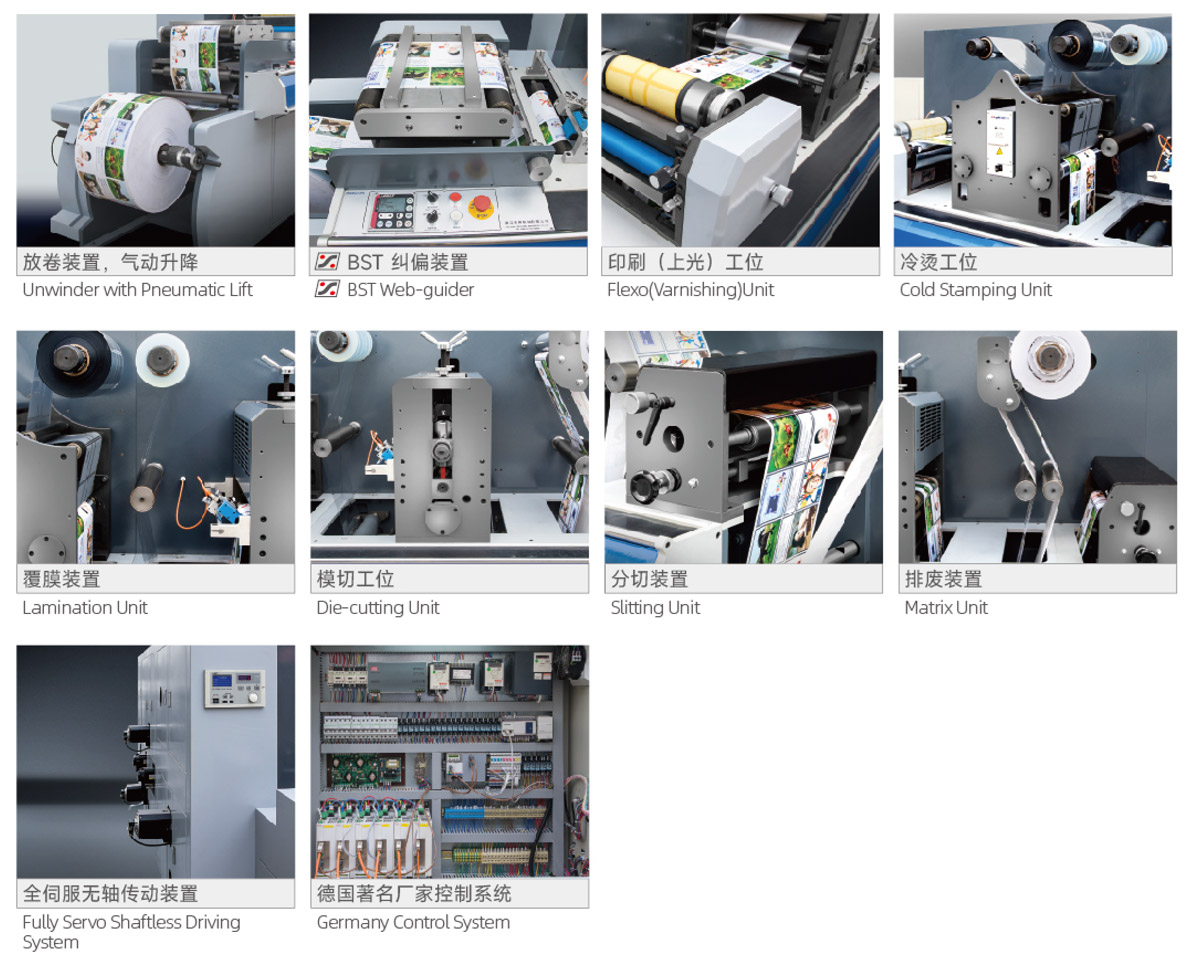

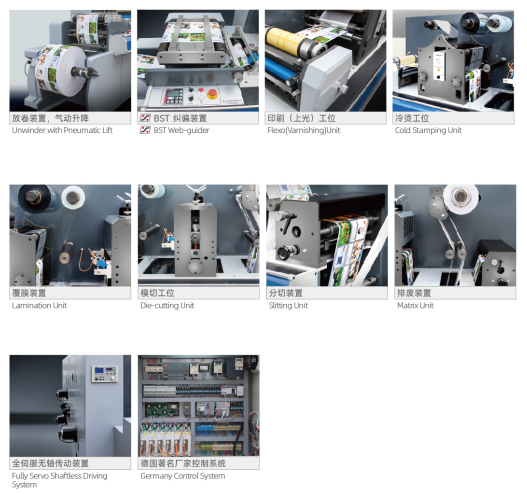

ZM-320 rotary/semi-rotary label die-cutting machine is a converting machine equipped with inline slitter. This machine adopts latest Rexrtoh-Bosch (Germany) servo motors and control system, including: unwinder, web-guider, lamination, register die-cutter, slitter and dual rewinder.
online service
ZM-320 rotary/semi-rotary label die-cutting machine is a converting machine equipped with inline slitter. This machine adopts latest Rexrtoh-Bosch (Germany) servo motors and control system, including: unwinder, web-guider, lamination, register die-cutter, slitter and dual rewinder. The register die-cutting system is our patented product, it can be full rotary or semi-rotary die-cutter according to the production requirement. When ZM-320 runs in semi-rotary mode, the tension among unwinder, web-guider and rewinder will be synchronized (different from traditional intermittent type), the material will not slip during die-cutting. Semi-rotary die-cutting unit adopts one big magnetic cylinder, simply changing the flexible die can satisfy different applications. If the job is of large quantity, then you can choose full rotary die-cutting mode (registration is stable and accurate in full rotary die-cutting mode), it will highly increase the die-cutting output. ZM-320 machine has the characteristics of fast speed, high accuracy, easy operation, high efficiency and less cost. It's good for all kind of label die-cutting jobs, including short and long run. Our ZM-320 rotary/semi-rotary label die-cutting machine commit to make the maximum profit for you, it's an ideal converting machine for the printing warehouse.
Main Technical parameters
|
Max. die - cutting speed (rotary)
|
120m/min
|
|
（Semi - rotary）
|
65m/min
|
|
Max. die - cutting length (rotary)
|
207 - 570mm
|
|
（Semi - rotary）
|
100 - 450mm
|
|
Max. die - cutting width
|
300mm
|
|
Max. web width
|
320mm
|
|
Max. unwinder dia
|
700mm
|
|
Max. rewinder dia
|
600mm
|
|
Die - cutting accuracy
|
±0.1mm
|
|
Min. Slitting width
|
20mm
|
|
Power supply
|
380V 3P
|
|
Weight
|
2600kgs
|
|
Dimensions (L×W×H)
|
322016801660mm
|
