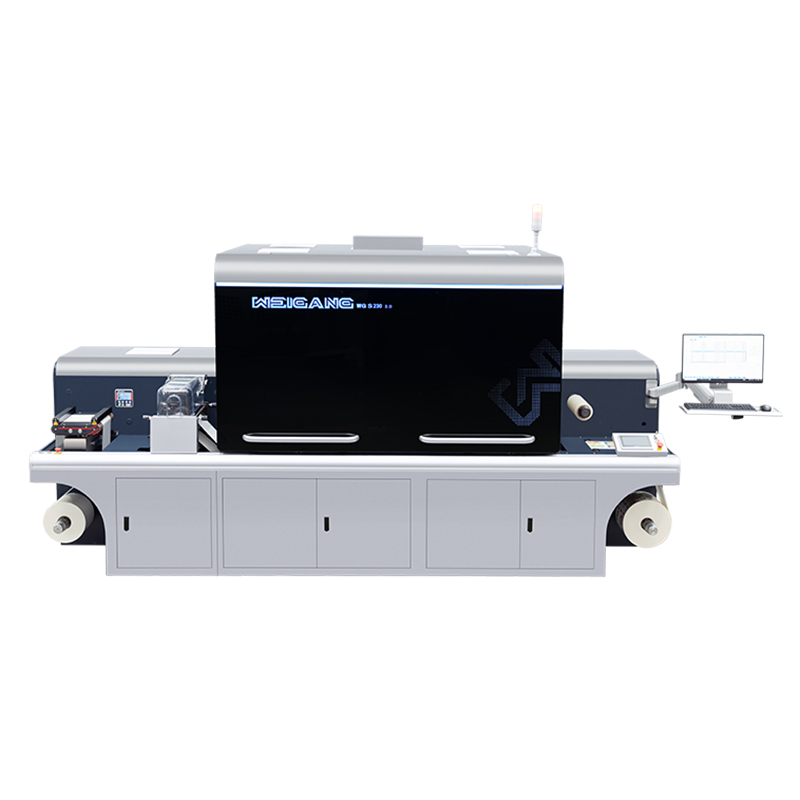

Digital Printing Machine WG S230
1. Print heads combination are flexible: multiple combination per requirements;
2. High printing efficiency and suitable for variable job application;
3. Max print width up to 230mm(EPS0N S3200)/210mm (Kyocera KJ4A-AL) which expands application range and increases flexibility.
online service
1. Print heads combination are flexible: multiple combination per requirements;
2. High printing efficiency and suitable for variable job application;
3. Max print width up to 230mm(EPS0N S3200)/210mm (Kyocera KJ4A-AL) which expands application range and increases flexibility.
Exquisite And Delicate Printing Effect
1. Adopts single pass solution, non-contact print, single pass print without plate making;
2. Maxprint resolution up to 1200*600dpi, 900*600dpi and 600*600dpi are setable; dedicate print with vivid color.
Convenient And Fast Operation
1. Highly integrated software enables fast order and very short runjob;
2. Touch screen interface easy to understand and operate;
3. Moisturizing, and print head anti-collision, makes machine easy and simple maintenance;
4. Compact model, small space request, can be adapted to various applications.
Stable And Reliable Printing Quality
1. Equips with high precision piezo printhead, has longer using life;
2. Consistent printing quality, supporting 24/7 production.
Main Technical Parameters
| Model | WG S230 Elegant Series |
| Print control | |
| Inkjet head | Piezo print head, greyscale level |
| Print Resolution | 600*600dpi / 900*600dpi / 1200*600dpi |
| Print Speed | High resolution mode 25m/min (EPSON S3200), 20m/min (Kyocera KJ4A-AL); |
| Normal mode 45m/min (EPSON S3200), 35m/min (Kyocera KJ4A-AL); | |
| Single bit mode 60m/min (EPSON S3200), 50m/min (Kyocera KJ4A-AL) | |
| Print Data | Fix data, variable data (option) |
| Print head model | EPSON S3200 / Kyocera KJ4A-AL |
| Ink | |
| Ink type | UV ink |
| Ink color | CMYK, White, varnish and panton (option) |
| Ink tank | 5L/color |
| Substrate system | |
| Unwinder/rewinder | Servo control, tension detector, Web break protect, roll dia. detector, etc. |
| Max unwinder/rewinder dia | 600mm |
| Substrate thickness (digital) | 0.04-0.35mm |
| Max print width | 230mm (EPSON S3200) / 210mm (Kyocera KJ4A-AL) |
| Web cleaner | Double side contacted type |
| Static eliminator | Static eliminator bar |
| Max web width | 350mm |
| Drying system | |
| LED dryer | one color one-curing LED drying system |
| Complete curing | UV dryer in the end |
| Data transfer | |
| Connector | XFP |
| Control panel | Touch screen |
| Specifications | |
| Dimension | 4050*2200*2200mm |
| Floor space | 9m² |
| Installation conditions | |
| Surroundings | Temperature: 15-24degree; humidity: 40-70% |
| Power supply | 380V, 3P |
| Total power: 40kw | |
| Air supply | 0.5-0.7Mpa |
-

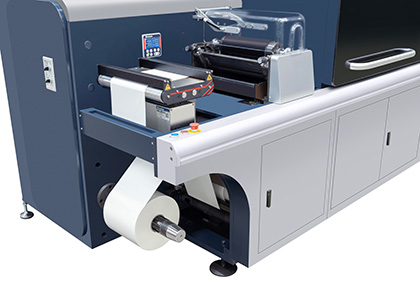

Unwinder
-

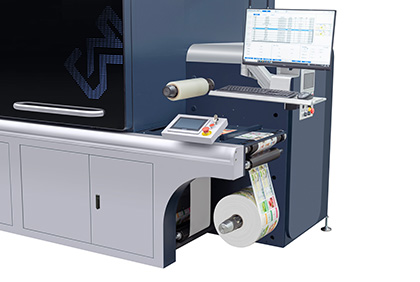

Laminating Unit & Rewinder System with Touchscreen Control
-

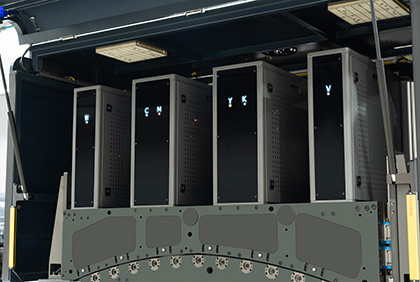

Digital Printing Unit
-

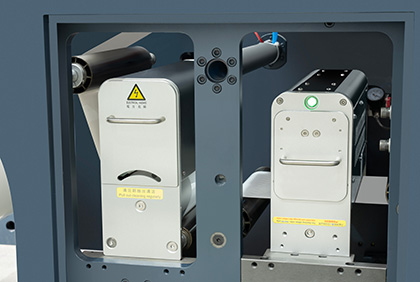

Web Cleaning & Corona Treatment System
-

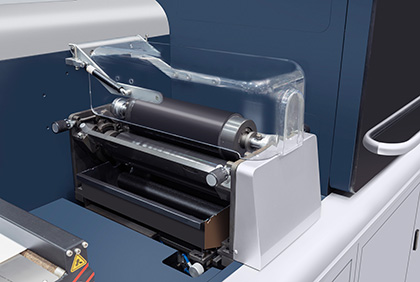

Coating Unit
