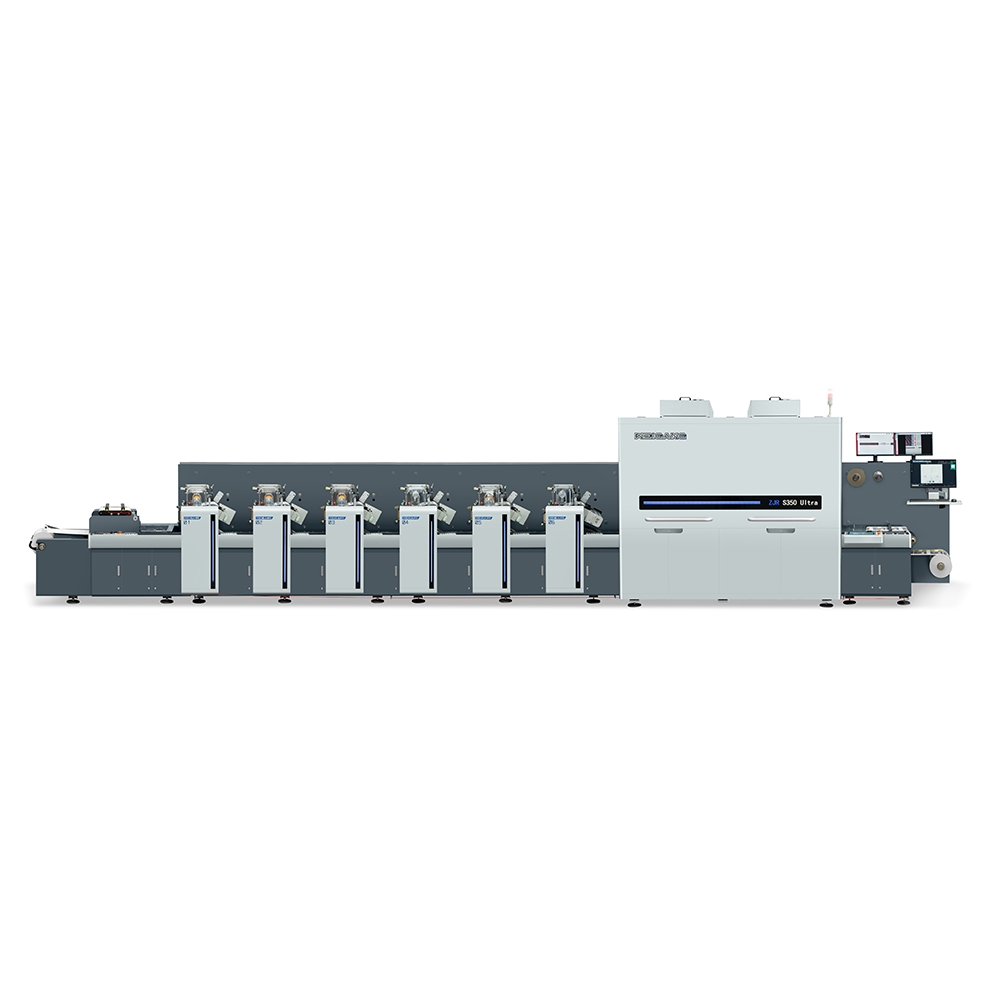

Digital Printing Machine ZJR S350 Ultra
1. High-precision servo control& independent drive, precise registration at high speed;
2. Multiple resolution modes, Single-pass non-contact printing(1200*1200);
3. CMYK4-color +enhancement +white ink(optional), compatible with various material;
4. High-speed variable data printing, suitable for short orders & proofing.
online service
1. High-precision servo control& independent drive, precise registration at high speed;
2. Multiple resolution modes, Single-pass non-contact printing(1200*1200);
3. CMYK4-color +enhancement +white ink(optional), compatible with various material;
4. High-speed variable data printing, suitable for short orders & proofing.
Exquisite And Delicate Printing Effect
1. Air-expanding sleeve plate cylinder (geartless), better printing precision & texture;2. Water-cooled roller, avoiding high-temperature damage from UV curing;
3. Flexo-digitalintegration, balancing high precision &variable data needs.
Convenient And Fast Operation
1. Lightweightgearless cylinder, quick &easy replacement;
2. Roller shoulder pressure fine-tuning, no major adjustment for differentcylinders;
3. Autocleaning, moisturizing & anti-collision, low maintenance cost
Stable And Reliable Printing Quality
1. Full servo control ensuring printing consistency at high speed;
2. Gearless cylinder+ water cooling, minimizing printing defects,
3. Pressure fine-tuning, avoiding quality issues from deviations.
Technical Parameters
| Model | ZJR S350 Ultra Series |
| Print control | |
| Inkjet head | Piezo print head, greyscale level |
| Print Resolution | (1200*1200) |
| Print Speed | Print speed:80m/min |
| Max speed of flexo printing | 180m/min |
| Print Date | Fix data, variable data (option) |
| Print head model | KJ4B-EX1200 |
| Ink | |
| Ink type | UV ink |
| Ink color | CMYK, White and varnish |
| Ink tank | 5L/color |
| Substrate system | |
| Unwinder/rewinder | Servo control, tension detector, Web break protect, roll dia. detector, etc. |
| Max unwinder/rewinder dia | 700mm |
| Substrate thickness (digital) | 0.04-0.35mm |
| Max print width | 330mm |
| Web cleaner | Double side contacted type |
| Static eliminator | Static eliminator bar |
| Max web width | 360mm |
| Drying system | |
| LED dryer | White color and special effect: 1 color/dryer; |
| CMYK and panton: 1 colors/dryer | |
| Complete curing | LED+UV dryer in the end |
| Cleaning system | |
| Cleaning unit | Auto cleaning system |
| Data transfer | |
| Connector | Optical interface |
| Control panel | Touch screen |
| Specifications | |
| Dimension | 1004022002200mm |
| Floor space | 36m² |
| Installation conditions | |
| Surroundings | Temperature: 15-24degree; humidity: 40-70% |
| Power supply | 380V, 3P |
| Inkjet printer: 15kw; LED/UV for inkjet:20kw | |
| Flexo Printing Power: 36 kw, UV Flexo Printing Power:48kw | |
| Air supply | 0.8Mpa |
-

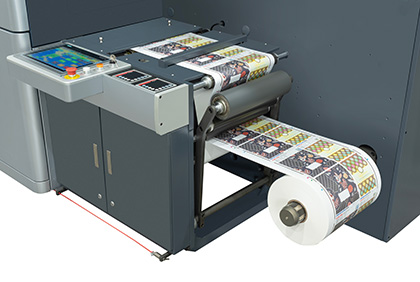

Rewinder
-

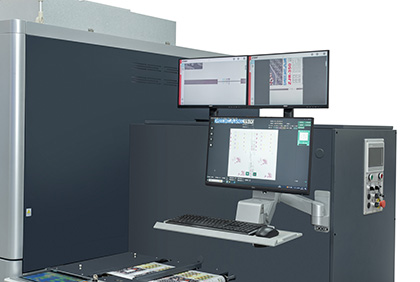

Inspection System
-

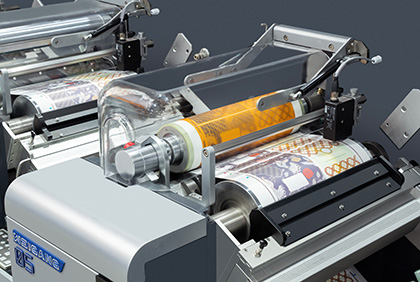

Flexo Printing Unit
-

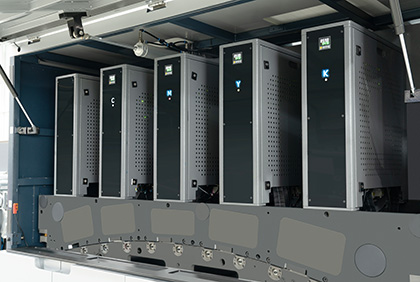

Digital Printing Unit
-
Digital Embellishment Unit
