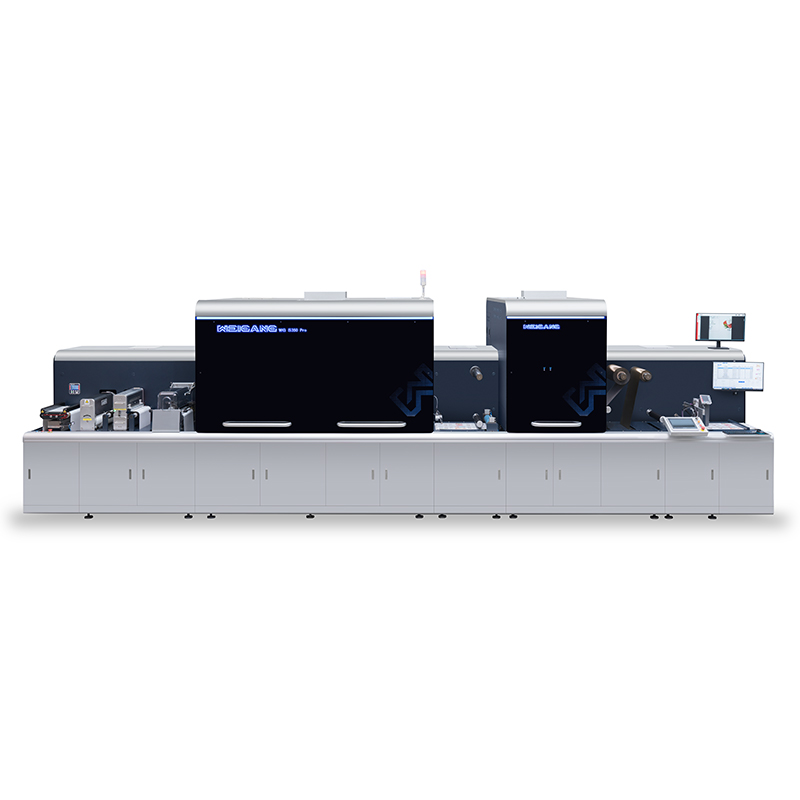

Digital Printing Machine WG S350 Pro
1. Print heads combination are flexible: multiple combination per requirements;
2. Max printspeed up to 60m/min which is high efficiency and suitable for variablejob application ;
3. Maxprint width upto 350mm(EPSON S3200)/320mm(Kj4B-EX600) which expands application range and increases flexibility.
online service
Flexible And High Efficiency
1. Print heads combination are flexible: multiple combination per requirements;
2. Max printspeed up to 60m/min which is high efficiency and suitable for variablejob application ;
3. Maxprint width upto 350mm(EPSON S3200)/320mm(Kj4B-EX600) which expands application range and increases flexibility.
Exquisite And Delicate Printing Effect
1. Adopts single pass solution, non-contact print, single pass print without plate making
2. Max print resolution up to 1200*1200dpi, dedicate print with vivid color.
Convenient And Fast Operation
1. Highly integrated software enables fastorder and very shortrun job;
2. Touch screen interface easy to understand and operate;
3. Automaticcleaning, moisturizing, and print head anti-collision, makes machine easy and simple maintenance,
4. Compact model, small space request, can be adapted to various applications.
Stable And Reliable Printing Quality
1. Equips with high precision piezo print head, has longer using life;2. Consistent printing quality, supporting 24/7 production.
Technical Parameters
| Model | WG S350 Pro Series |
| Print control | |
| Inkjet head | Piezo print head, greyscale level |
| Print Resolution | 600*600dpi / 900*600dpi / 1200*600dpi |
| Print Speed | High resolution mode 30m/min (EPSON S3200), 25m/min (KJ4B-EX600); |
| Normal mode 45m/min (EPSON S3200), 35m/min (KJ4B-EX600); | |
| Single bit mode 60m/min (EPSON S3200), 50m/min (KJ4B-EX600) | |
| Print Date | Fix data, variable data (option) |
| Print head model | EPSON S3200 / KJ4B-EX600 |
| Ink | |
| Ink type | UV ink |
| Ink color | CMYK, White, varnish and panton (option) |
| Ink tank | 5L/color |
| Substrate system | |
| Unwinder/rewinder | Servo control, tension detector, Web break protect, roll dia. detector, etc. |
| Max unwinder/rewinder dia | 700mm |
| Substrate thickness (digital) | 0.02-0.35mm |
| Max print width | 350mm (EPSON S3200) / 320mm (KJ4B-EX600) |
| Web cleaner | Double side contacted type |
| Static eliminator | Static eliminator bar |
| Max web width | 360mm |
| Drying system | |
| LED dryer | White color and special effect: 1 color/dryer; |
| CMYK and panton: 1 colors/dryer | |
| Complete curing | LED+UV dryer in the end |
| Cleaning system | |
| Cleaning unit | Auto cleaning system |
| Data transfer | |
| Connector | XFP |
| Control panel | Touch screen |
| Specifications | |
| Dimension | 7820*2200*2300mm |
| Floor space | 30m² |
| Installation conditions | |
| Surroundings | Temperature: 15-24degree; humidity: 40-70% |
| Power supply | 380V, 3P |
| (machine: 25kw; LED/UV for inkjet: 40kw) | |
| Air supply | 0.6Mpa |
-

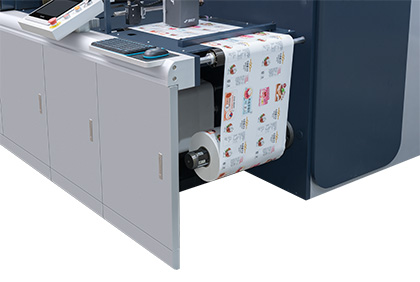

Rewinder
-

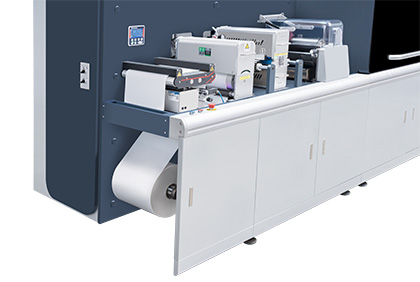

Unwinder
-

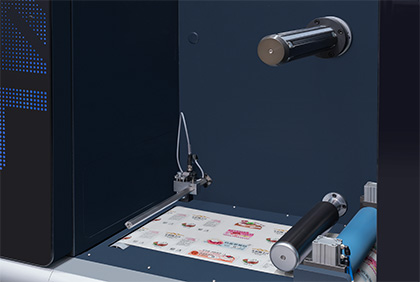

Digital Proofing Station
-

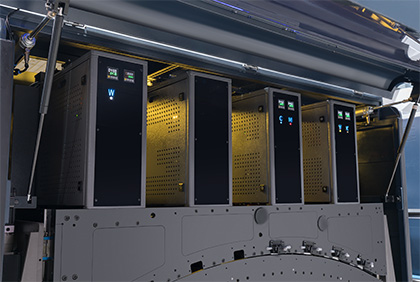

Digital Printing Unit
-

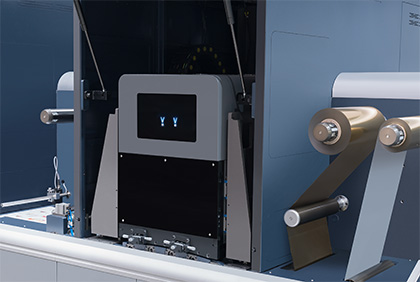

2-color Digital Embellishment Module&Foil Stamping
-
Web-guider,Corona-Treatment-System,Web-Cleaner,Primer-Unit
